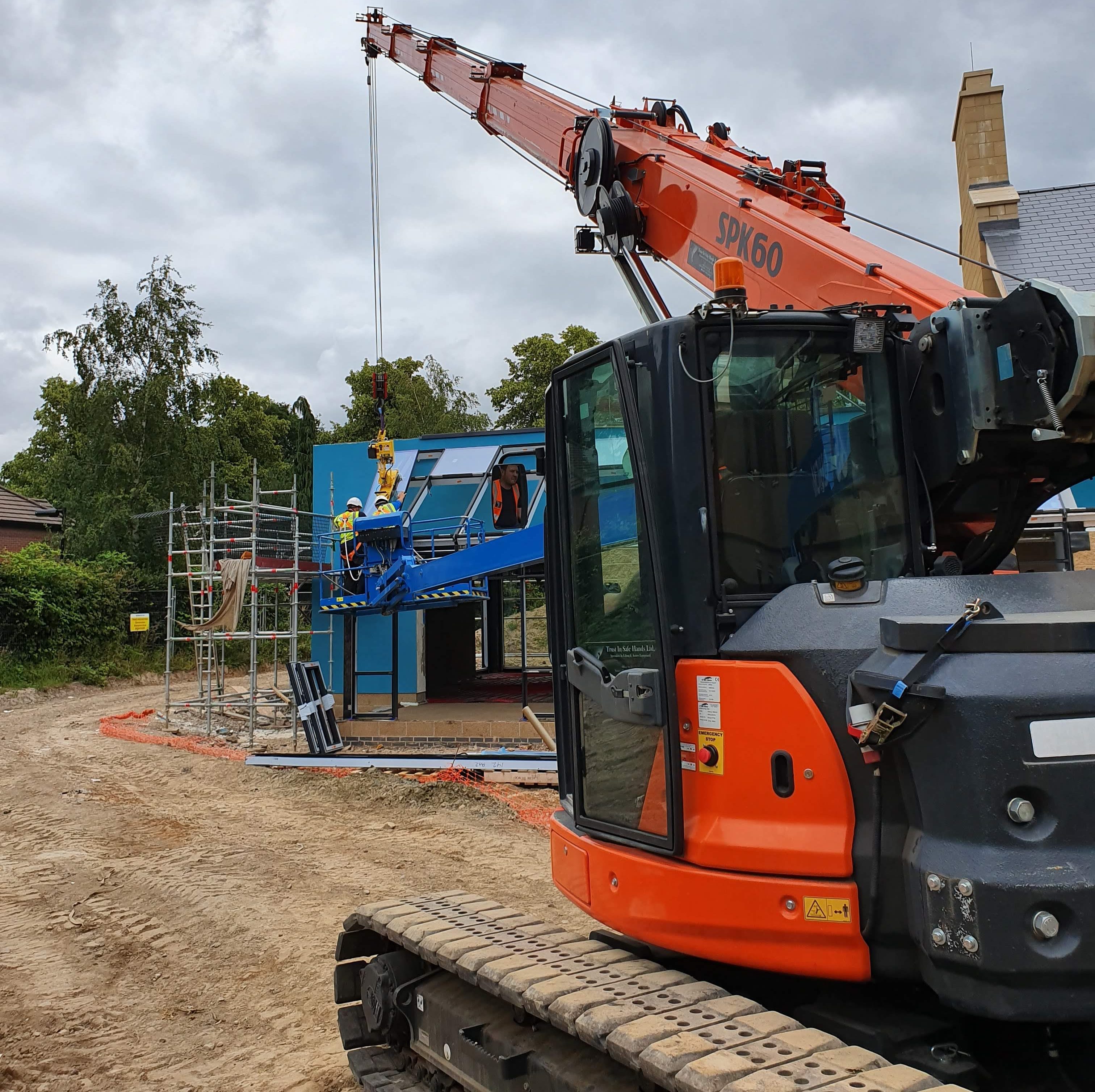

Jekko SPK60
The SPK60 is an extremely capable tele-crawler that is the industry’s only crawler to come with a telescopic luffing fly jib.

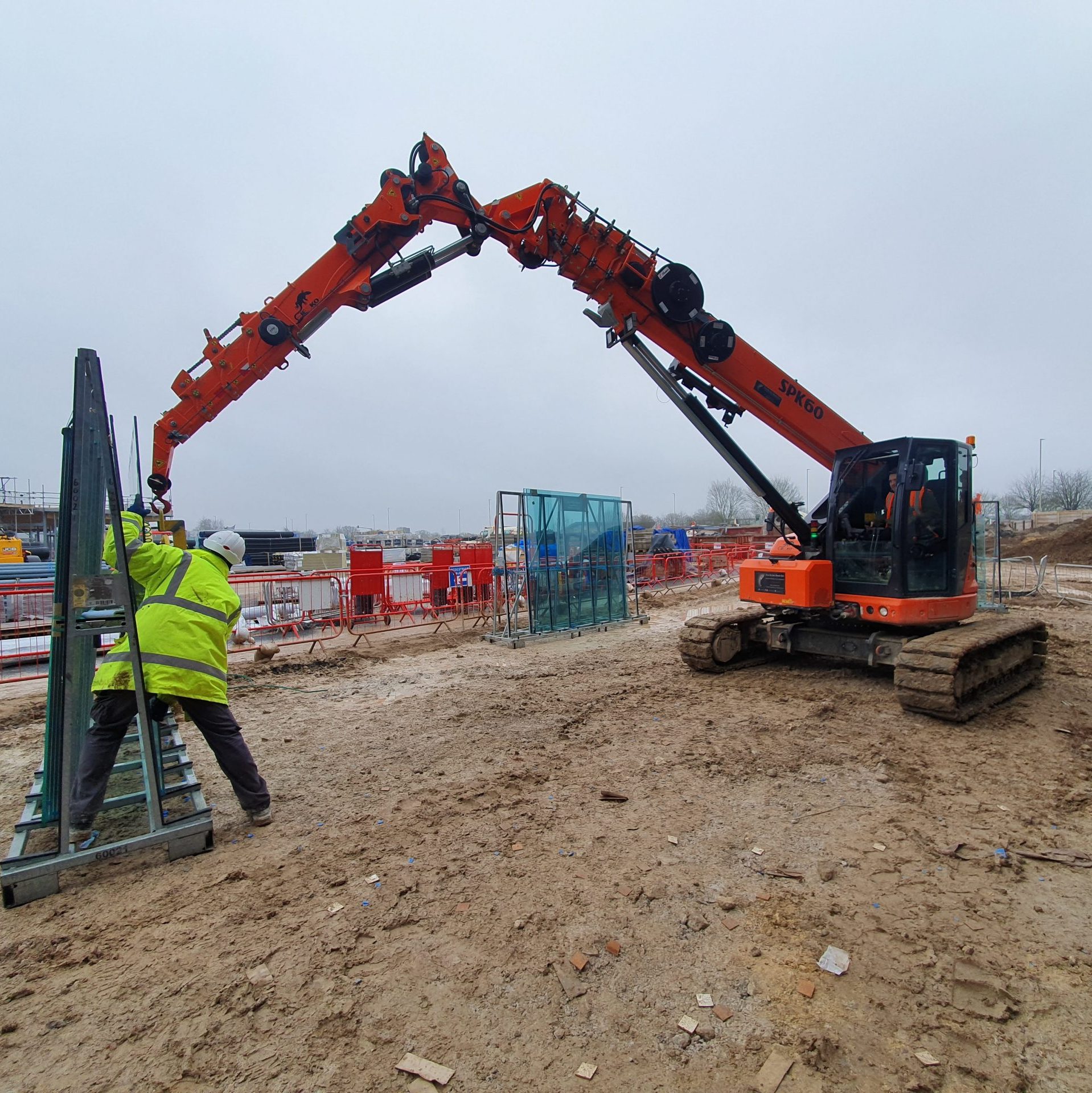

The ability to lift up to 6.0t and pick and carry 3.0t the Jekko is a fantastic option for glass, steel or concrete. This state of the art machine has extendable tracks which in the matter of seconds increase the cranes footprint and increase its payload capabilities.
TWO TRACK-CONFIG
Wide or narrow track configuration
LUFFING FLY-JIB
Increase reach to 26m

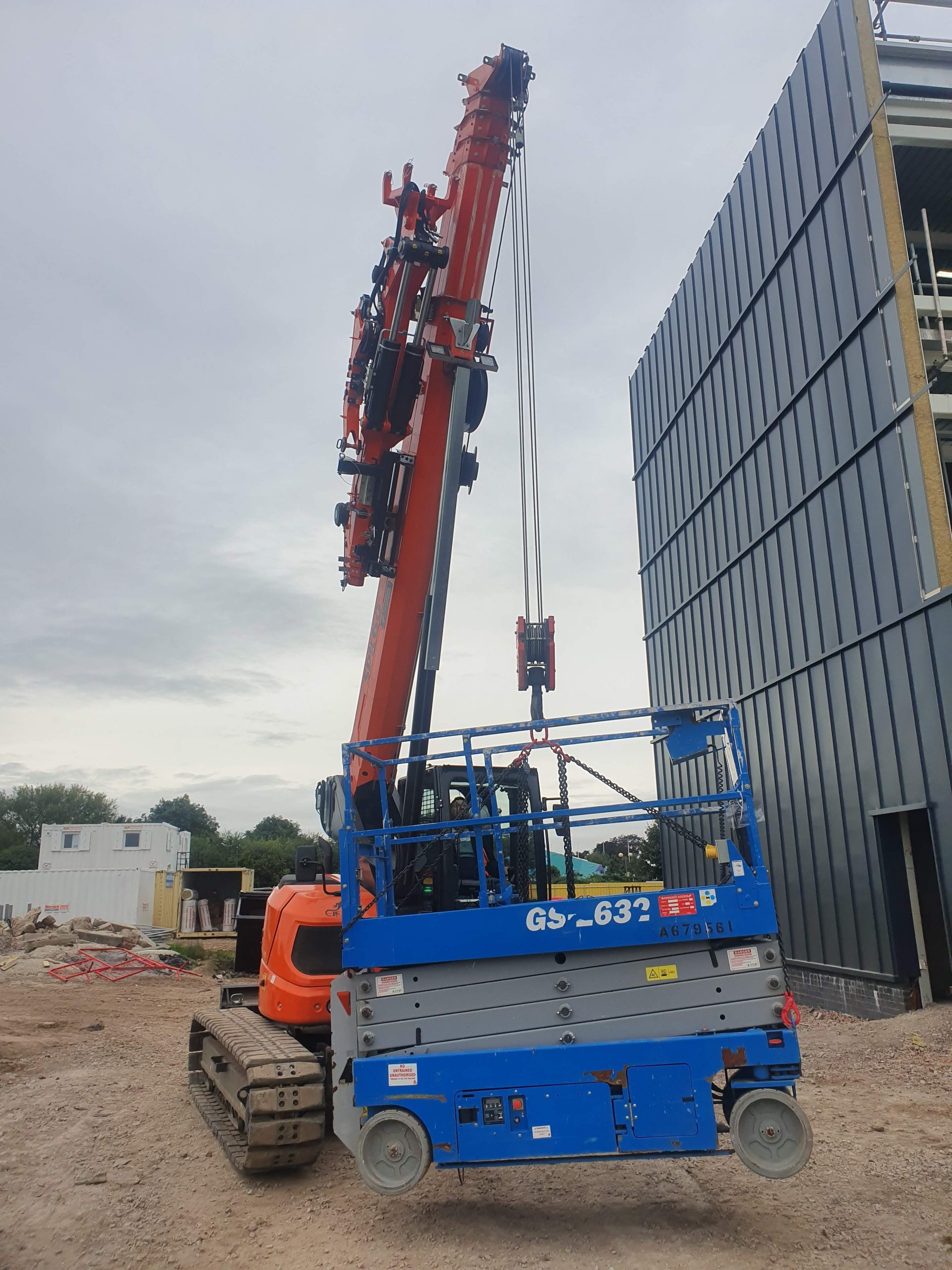

PICK & CARRY
Up to 3000kg pick & carry duties

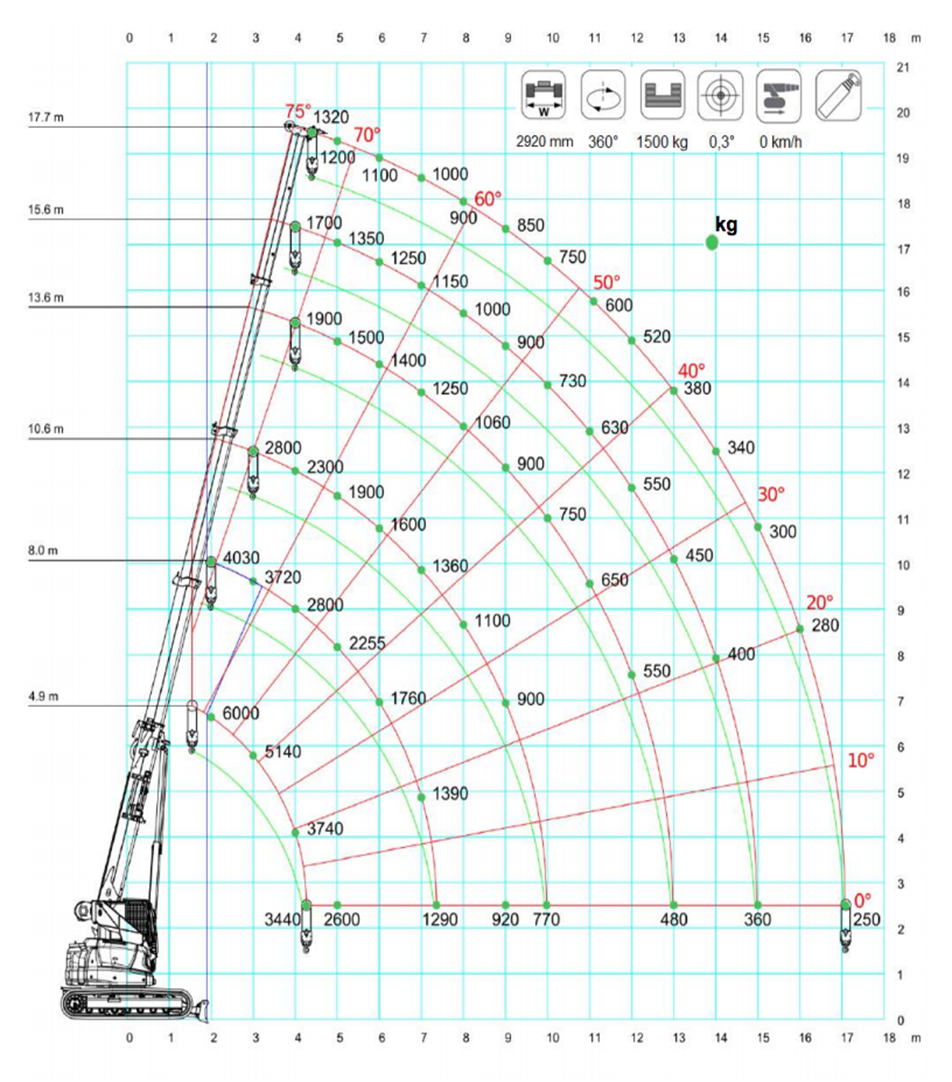

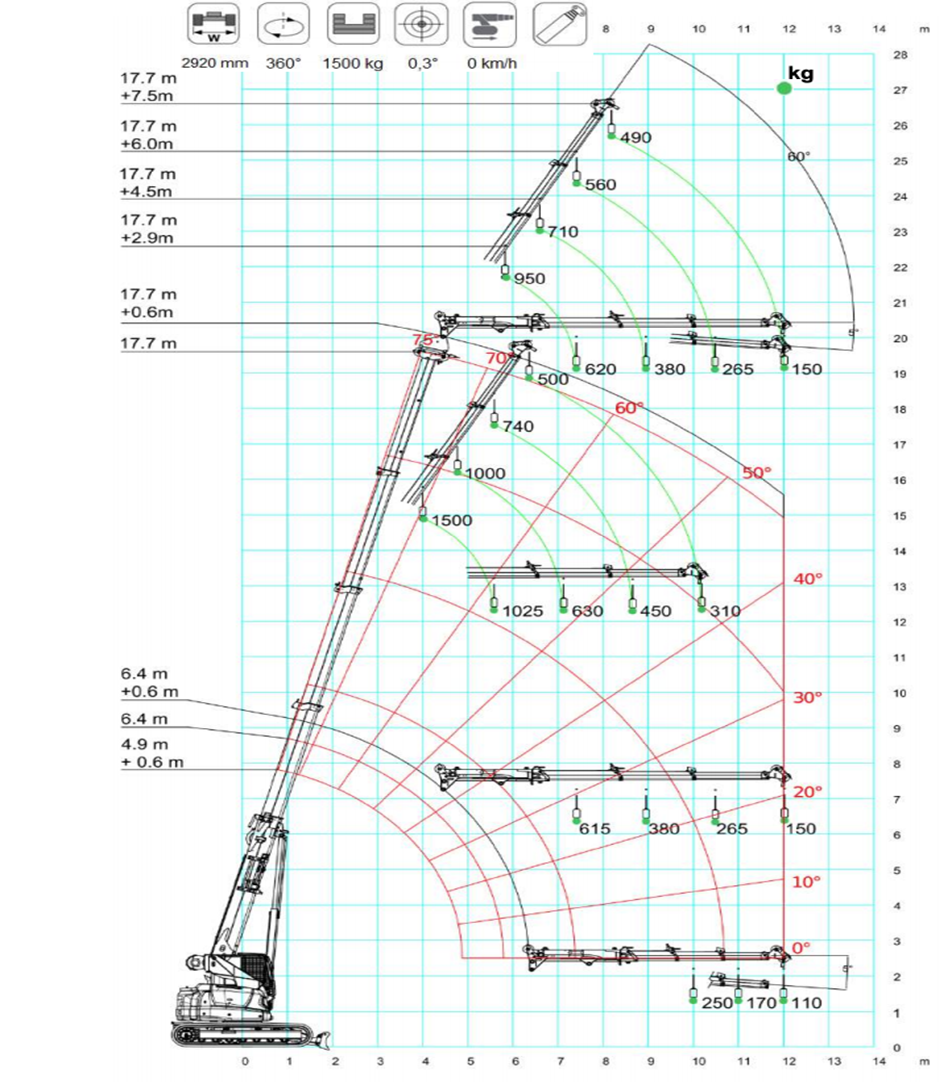

Crane Specs
Features
• Capacity 6.0t x 1.4m

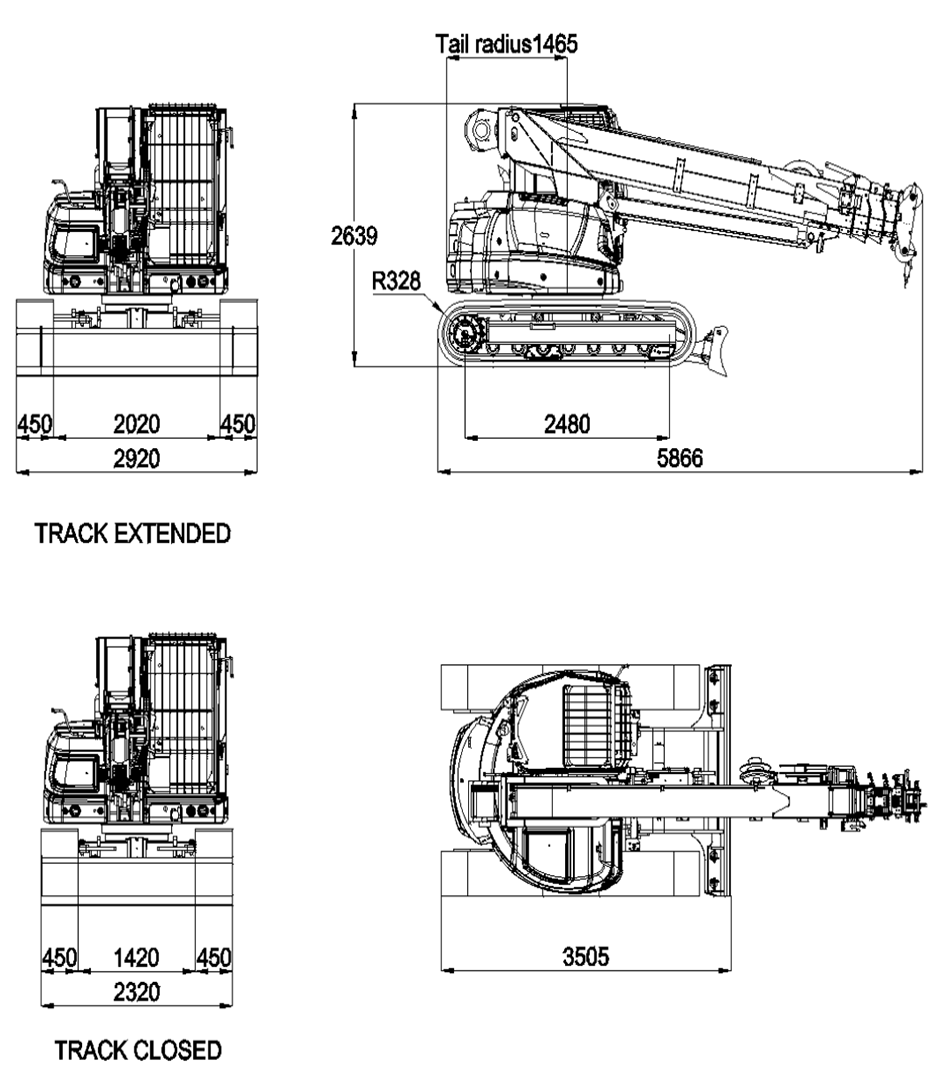

• Total width 2920mm (Tracks Extended)
• Max working radius 17.0m
• Max boom length 17.7m
• Max lifting height 19m (Main Jib)
• Diesel Powered or 415kw Electric Plug as standard
• Radio remote control as standard
• Working area limitation
• Optional slew limitation
•On board 1500kg hydraulically-luffing fly-jib.
• Pick and carry 3000kg
• Maximum wind speed for safe use is 36km/h, 22mph or 10m/s
